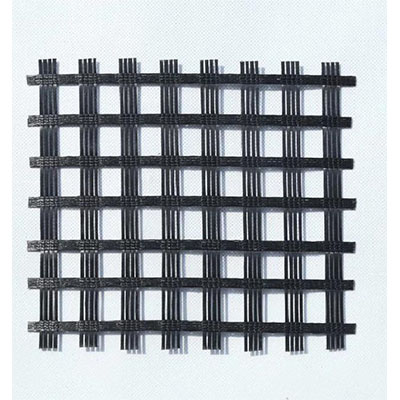

Fiberglass geogrid composite geotextile Abbreviation: glass fiber grating geotextile, is an emerging geosynthetic material.
Product introduction: Fiberglass grid composite geogrid is a composite of geogrid and geotextile. The first composite form: the geogrid is a self-adhesive glass fiber geogrid or a polyester geogrid, the geotextile is a polyester filament geotextile; the second composite form: a composite of a two-way plastic geogrid and a geotextile.
Product characteristics: It has the characteristics of high tensile strength, small elongation and uniform longitudinal and lateral deformation. At the same time, it has high water permeability and excellent filterability and wear resistance.
Main functions: pavement, roadbed reinforcement, filtration, drainage, protection, isolation.
Engineering application: 1. It is used for road, railway, airport and other road reinforcement. 2. It is used for maintenance and widening of old pavement (asphalt pavement, cement concrete pavement). 3. Used for roadbed reinforcement.
Made up of 120G geotextile and 50Kn fiberglass geogrid or polyester geogrid. Another: the specific models of geotextiles and geogrids can be customized according to requirements. The geogrid has a width of 1m-6m.
The geogrid composite geotextile is a new composite geotechnical material which is made by weaving or bonding glass fiber or high-strength polyester fiber and non-woven fabric, and organically combines the excellent performance of both geogrid and geotextile.
Performance:
1. High tensile strength, low elongation 2. High elastic modulus 3. Good temperature resistance 4. High water permeability and filtration resistance 5. Resistance to tearing, anti-dissemination and long service life
Application: Suitable for highway, railway, water conservancy, airport, port, reclamation, landfill, municipal construction, etc. It has many functions such as protection, isolation, filtration, reinforcement, anti-seepage and drainage.
Remarks:
1. GGN and GPN are composite materials directly woven by fibers and geotextiles. GGM and GPM are composite materials which are bonded to geotextile after coating treatment.
2. The mesh size is the mesh size of the fiber weave or grille.
3, geogrid strength, width and grid size can be customized according to user requirements.
